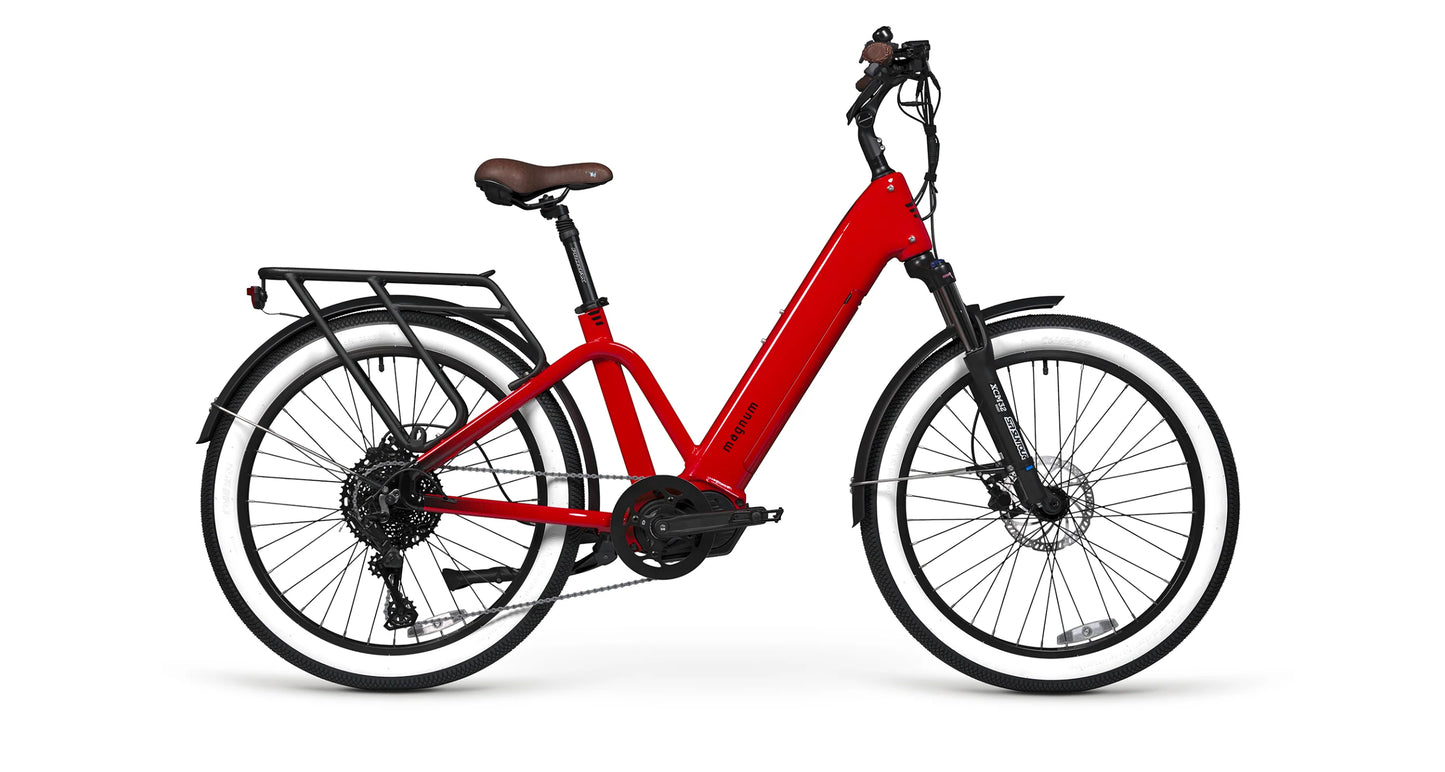

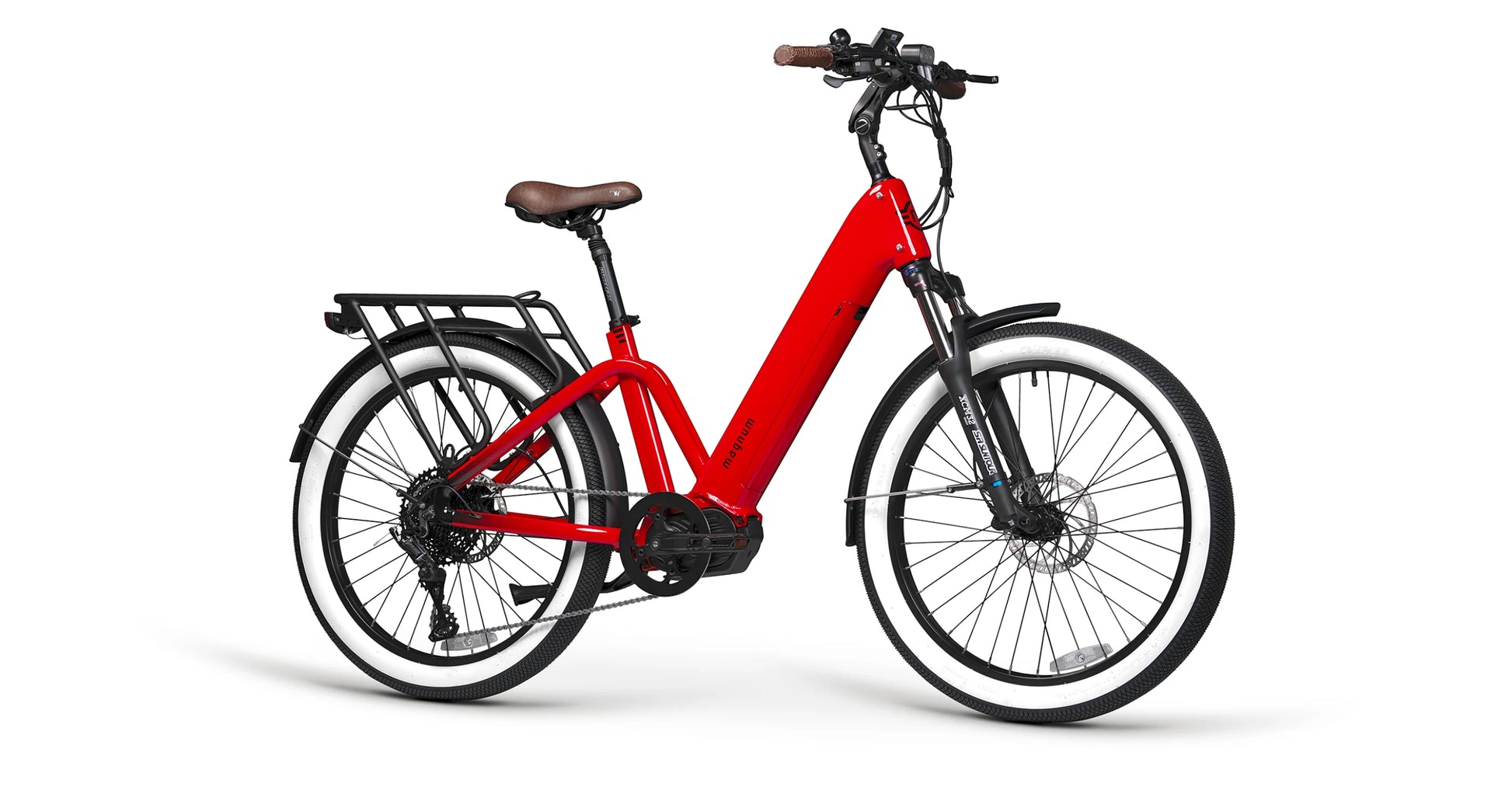

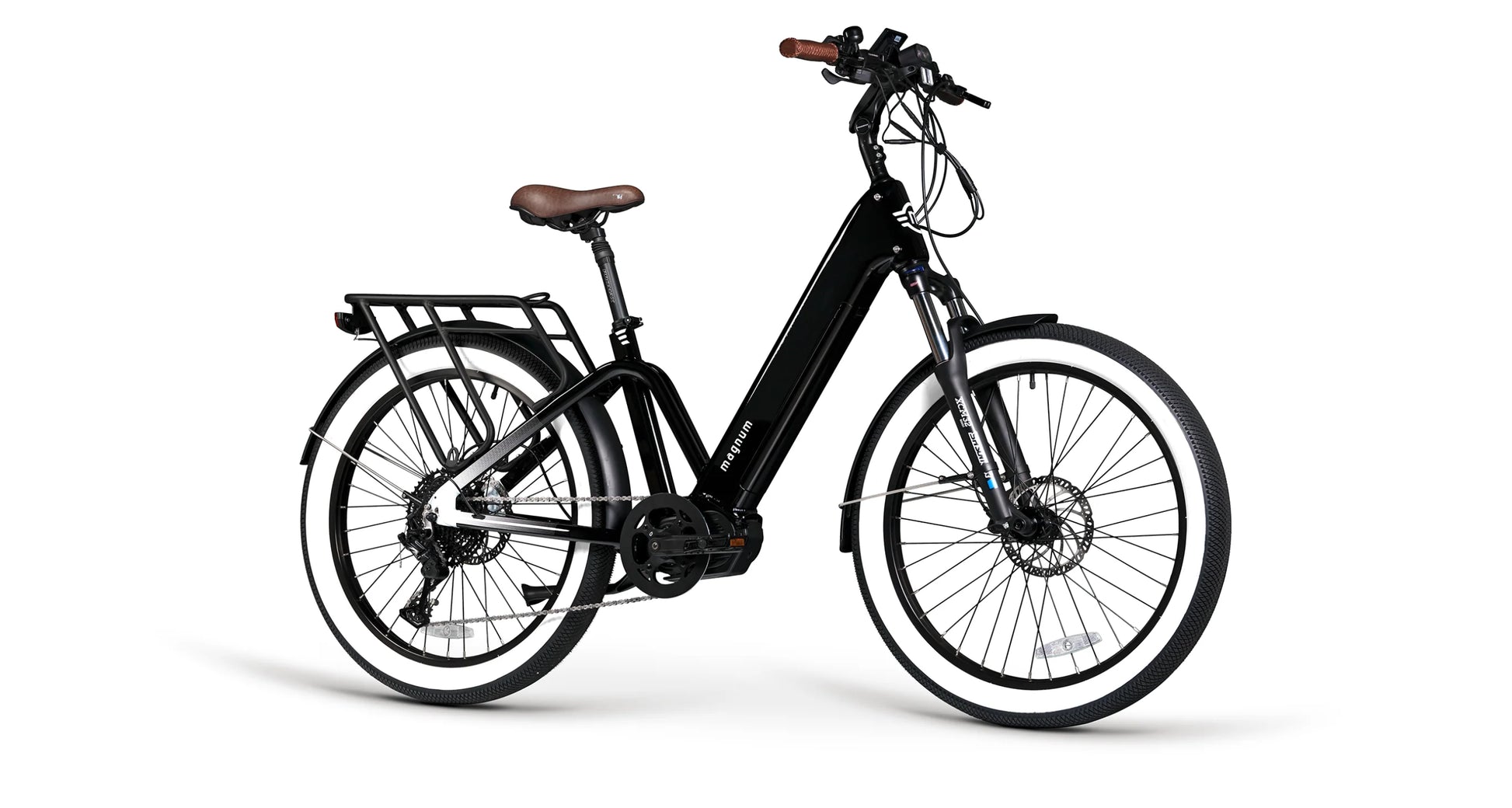

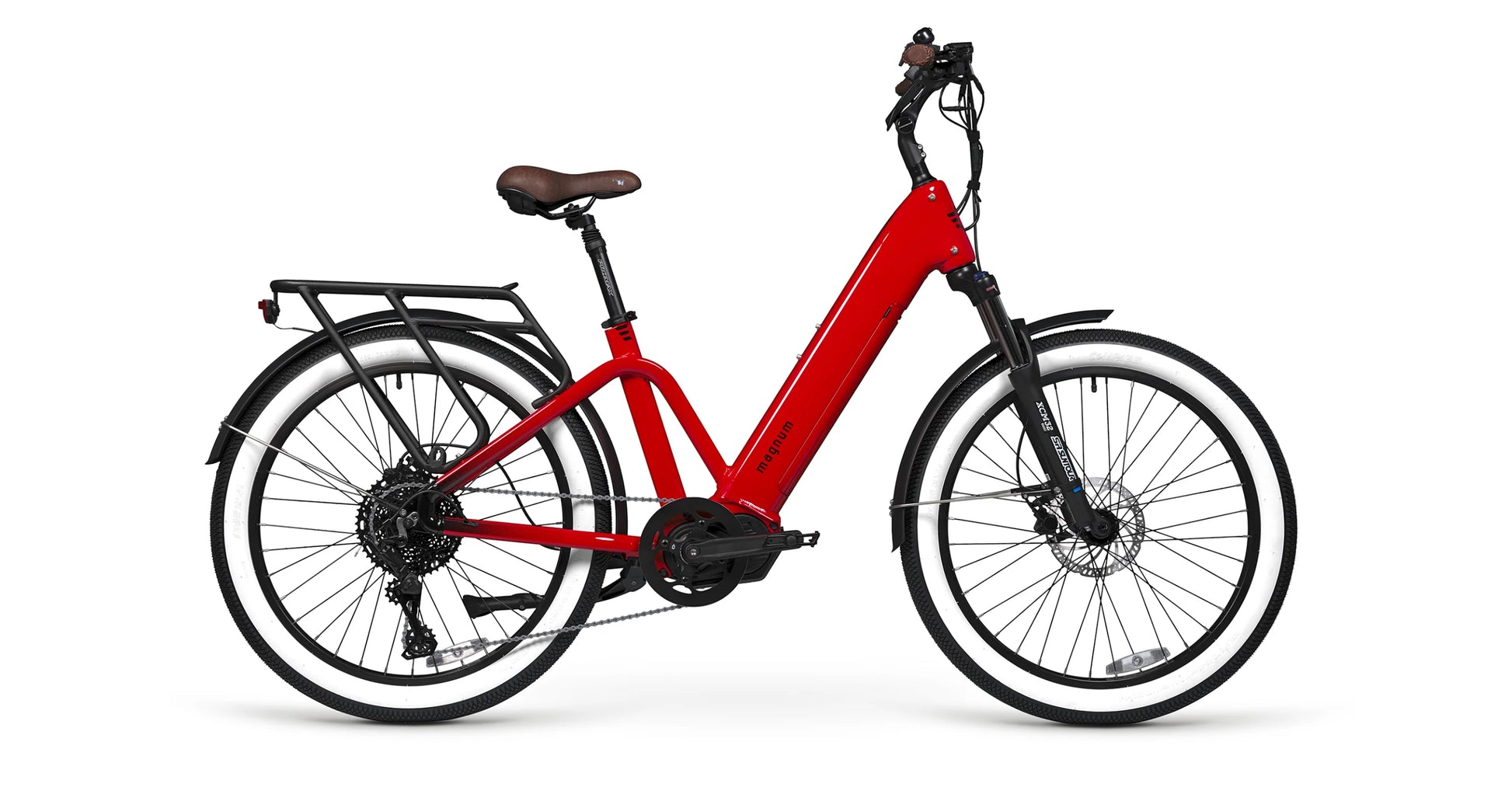

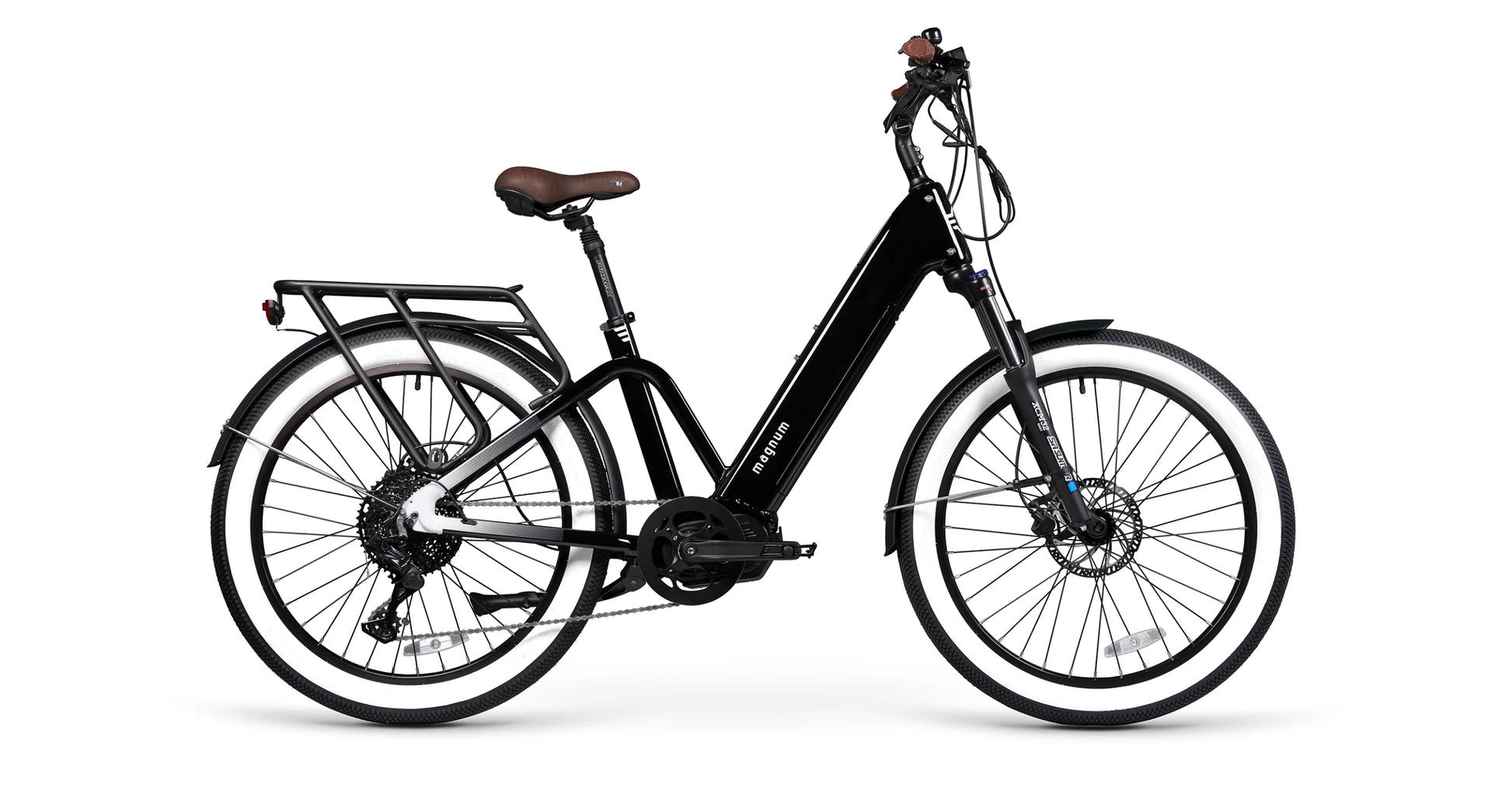

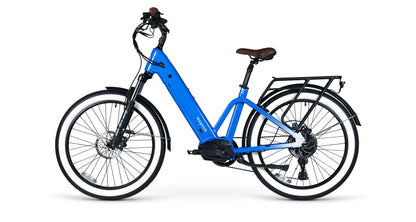

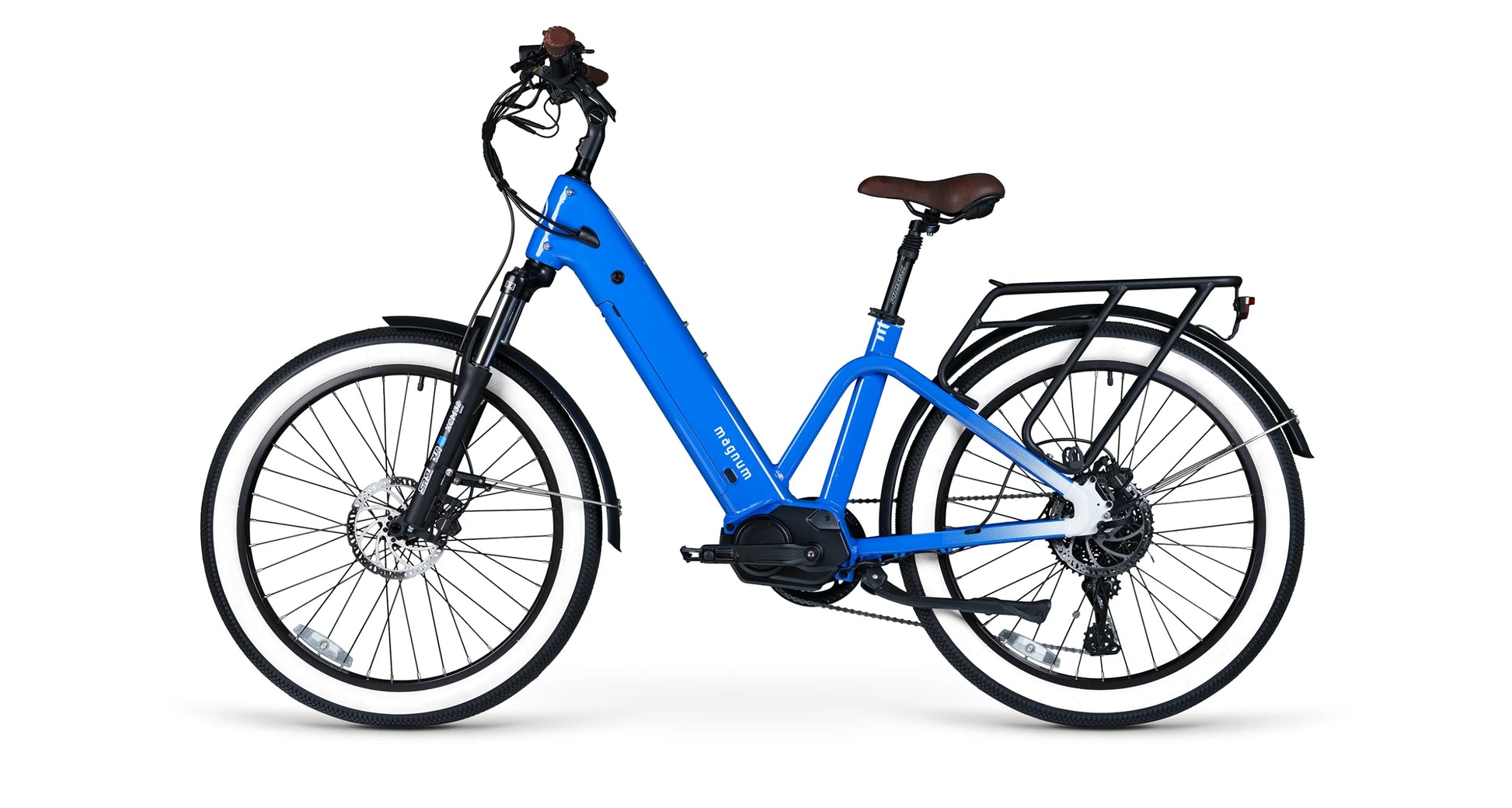

Magnum Pilot

Motor Brand: Ananda

Motor Type: Mid-Drive Motor

Motor Nominal Output: 500 Watts

Motor Peak Output: 750 Watts

Battery Brand: Samsung Cells

Battery Voltage: 48 Volts

Battery Ah: 15Ah

Battery Wh: 720Wh

Battery Chemistry: Li-NMC

Battery Charge Time (from empty): 7.5 Hours

Minimum Range: 25 Miles (40 Kilometers)

Maximum Range: 50 miles (80 Kilometers)

Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Display Accessories

Drive Mode: Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed: Up to 27 mph with Pedal Assist, 20 mph with Throttle

Lights: Integrated front and rear lights.

Frame material: Aluminum Alloy

Frame size: 17.5”

Fork Details: Suntour XCM32 Boost

Gearing details: Microshift Advent 10-Speed

Shifter Details: Microshift Advent 10-Speed

Crank: Aluminum Alloy 170mm

Pedals: Wellgo

Stem: Tool-free Adjustable

Brakes: Tektro Hydraulic

Grips: Brown Faux Leather

Saddle: Selle Royal Freeway

Wheel size

26”

Fenders:Front and Rear Included

Chain: KMC 10-Speed

Seat Tube

17.5" (44 cm)

Reach

16.75" (42.5 cm)

Stand Over Height

19.25" (49 cm)

Virtual Top Tube Length

23.25" (59 cm)

Min Saddle Height

23" (58 cm)

Max Saddle Height

29.25" (74 cm)

Width

76" (193 cm)

Total Weight

74.5 lbs (33.75 kg)

Battery Weight

8.5 lbs (3.9 kg)

Recommended Minimum Rider Height

5'0"

Kickstand

Includes Center-Mounted Single Side Adjustable Length Kickstand

Bell

Includes Bell

Charger: 54.6V 2A Charger

Front Rack

Rear Rack

Includes Rear Rack

Fenders

Includes Front and Rear Fenders

Accessory Mounts

Includes Built-In Head Tube and Top Tube Accessory Mounts
